Shop BILSTEIN ESCORT CUP

BILSTEIN "ESCORT CUP" COIL OVER SUSPENSION

Lindsey Racing has pulled together all the pieces to offer their complete Bilstein Escort Cup Car Suspension Kit for your 944 '87-'89, 944S, 944S2, 944 Turbo or 968.

We offer this kit in four different configurations.

First you have the choice of different Front Strut valving options (380/150 (Street/Track) or 600/190 (Track). Then with either of those valving choices, you can then get the kit with or without adjustable camber plates.

Front Struts and Rear Shocks utilize 2-1/4" ID Coil Springs. Lindsey Racing offers the Hypercoil brand of Coil Springs. We can help you determine spring rates based on application and whether or not you are going to use or retain the rear torsion bars.

This kit can be used with our Lindsey Racing Adjustable Camber Plates (as well as others). If using our camber plates, the you don't need a upper spring hat as it is built into our camber plates. If you want to use the stock/original upper strut mount, you will need our Lindsey Racing 2-1/4" Spring Hats. Some other camber plates may also require our spring hats.

Escort Kit #01 Includes:

Bilstein Left Front Strut valved 380/150
Bilstein Right Front Strut valved 380/150
Bilstein Rear Shocks "Pair" valved 565/218
Hypercoil 2.25" ID Front Coil Springs
Hypercoil 2.25" ID Rear Coil Springs
Lower Spring Perch & Locking Ring "Set of 4"

Escort Kit #02 Includes:

Bilstein Left Front Strut valved 600/190
Bilstein Right Front Strut valved 600/190
Bilstein Rear Shocks "Pair" valved 565/218
Hypercoil 2.25" ID Front Coil Springs
Hypercoil 2.25" ID Rear Coil Springs
Lower Spring Perch & Locking Ring "Set of 4"

Escort Kit #01CP Includes:

Bilstein Left Front Strut valved 380/150
Bilstein Right Front Strut valved 380/150
Bilstein Rear Shocks "Pair" valved 565/218
Hypercoil 2.25" ID Front Coil Springs
Hypercoil 2.25" ID Rear Coil Springs
Lower Spring Perch & Locking Ring "Set of 4"
Lindsey Racing Camber Plates

Escort Kit #02CP Includes:

Bilstein Left Front Strut valved 600/190
Bilstein Right Front Strut valved 600/190
Bilstein Rear Shocks "Pair" valved 565/218
Hypercoil 2.25" ID Front Coil Springs
Hypercoil 2.25" ID Rear Coil Springs
Lower Spring Perch & Locking Ring "Set of 4"
Lindsey Racing Camber Plates

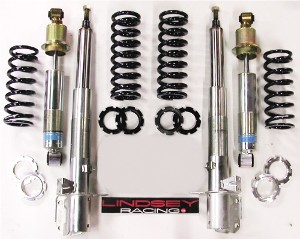

BILSTEIN ESCORT CUP SYSTEM #02 944T ALL / 944 ALL from '87 / 968 - LRK944BILSUS02 — Part#: LRK-944-BIL-SUS-02
$2,990.00

BILSTEIN ESCORT CUP SYSTEM #02 944T ALL / 944 ALL from '87 / 968 - LRK944BILSUS02
Cart Qty: None Ship Weight: 45.00

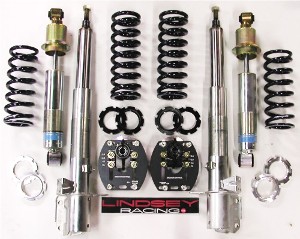

BILSTEIN ESCORT CUP SYSTEM #02CP 944T ALL / 944 ALL from '87 / 968 - LRK944BILSUS02CP — Part#: LRK-944-BIL-SUS-02CP
$3,490.00

BILSTEIN ESCORT CUP SYSTEM #02CP 944T ALL / 944 ALL from '87 / 968 - LRK944BILSUS02CP
Cart Qty: None Ship Weight: 50.00

2.25 INCH SPRING HAT (Pair) 944 ALL / 968 — Part#: LRA-HAT-101
$146.95

2.25 INCH SPRING HAT (Pair) 944 ALL / 968
Cart Qty: None Ship Weight: 1.00

ESCORT STRUT LH valved 600/190 944T ALL / 944 ALL from '87 / 968 — Part#: BIL-AK-1120
$675.00

ESCORT STRUT LH valved 600/190 944T ALL / 944 ALL from '87 / 968
Cart Qty: None Ship Weight: 10.00

ESCORT STRUT RH valved 600/190 944T ALL / 944 ALL from '87 / 968 — Part#: BIL-AK-1121
$675.00

ESCORT STRUT RH valved 600/190 944T ALL / 944 ALL from '87 / 968
Cart Qty: None Ship Weight: 10.00

ESCORT REAR SHOCK valved 565/218 944T ALL / 944 ALL from '87 / 968 — Part#: BIL-AK-37354
$640.00

ESCORT REAR SHOCK valved 565/218 944T ALL / 944 ALL from '87 / 968
Cart Qty: None Ship Weight: 4.50

SPRING SEAT BEARING KIT - 999343006K1 — Part#: 999-343-006-K1
$78.75

SPRING SEAT BEARING KIT - 999343006K1
Cart Qty: None Ship Weight: 0.25

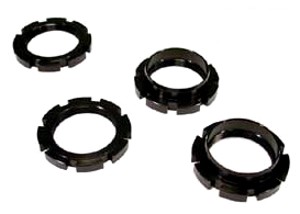

SPRING PERCH KIT 2-1/4 INCH — Part#: L-944-343-009-K1
$79.95

SPRING PERCH KIT 2-1/4 INCH
Cart Qty: None Ship Weight: 1.00
