SKU: LRA-951-EXH-5BF
5 INCH LINDSEY BIG FLOW EXHAUST 944T

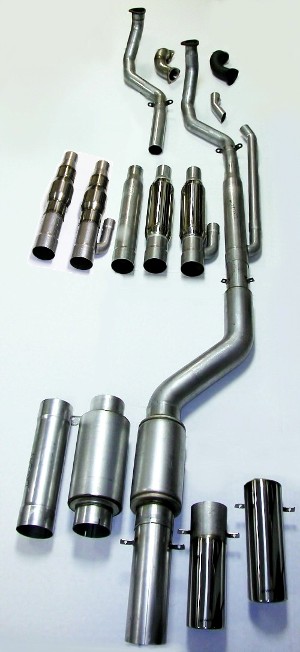

Lindsey Racing 5" "Big Flow" Exhaust System.
Fits Models:
LR-951-EXH-5BF:
OPTIONAL 3" TURBO DOWN PIPE:If you have been considering topping off your exhaust system purchase by adding our 3" Turbo Down Pipe, this is the perfect time. When you select the Turbo Down Pipe option now, we substitute the normal 3 bolt stock bolt circle triangular flange connection on what we refer to as the "wastegate pipe" for the larger diameter 3" Bolt Flanged pipe that mates to our 3" Turbo Down Pipe.
OPTIONAL CAT DELETE, CAT AND PRE-MUFFLER:The second pipe in this system is where you may place a cat delete, cat, or a pre-muffler. This is offered 6 different ways because in each of those three options, you have the choice of connecting the wastage back in, or dumping it to atmosphere. This gives us the 6 possible options.
100 Cell Higher Flow Metal Cat's are available upon special order. MUFFLERS AND MRP'S:The systems do not come standard with a muffler or MRP (Muffler Replacement Pipe) included in the system base price. It's an option you select and purchase separately. Some of you may already have a muffler you want to use so we don't force you to purchase one from us. The dimensions of the 5" mufflers we use are 20.5" overall length, 5" center in, and 5" center out.
TIPS:The standard 5" exhaust comes with an outlet pipe from the muffler which serves as the exhaust tip. We have configured this outlet pipe a few ways.
THERMAL COATING:If you wish to have the exhaust thermal barrier coated, that adds $200 to the price of a system. Highly recommended for a track car. It will help keep the heat from entering the driver compartment. The thermal coating also aids in keeping up the velocity of the exiting exhaust by helping maintain the heat in the pipe rather than letting it cool down as quickly and slow down. It will also add to the life expectancy of the exhaust. With or without the thermal coating, the exhaust will give you many years of use.
(Optional) 02 SENSOR BUNG & PLUG:If you plan on using a Wide Band Oxygen Sensor, we can WELD the bung on the exhaust pipe for you before shipping your system. The additional charge is for the Threaded Bung & Plug Kit and the labor to install ( WELD ) the bung to the pipe punching the hole through the pipe. You can select this option when ordering your exhaust.(Optional) WASTEGATE OUTLET DUMP TO ATMOSPHERE MUFFLER:Any of our 944 Turbo exhausts have the option to dump the wastegate to atmosphere. When you select that choice for your system, you get a Wastegate Outlet Dump Pipe or turndown as standard equipment supplied with the exhaust kit. The sound coming out of that can be loud since it's pre-turbo. So we developed a Wastegate Outlet Muffler. You can select this optional Wastegate Muffler through the exhaust checkout process. We will supply this outlet muffler, and you will not get the standard turndown. |
