SKU: LRA-OIL-PA1
ADAPTER OIL PRESSURE GAUGE

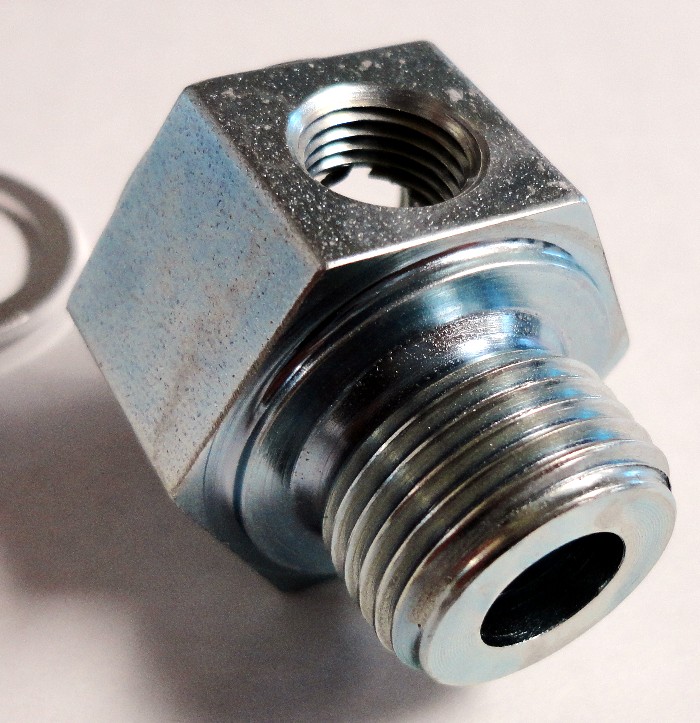

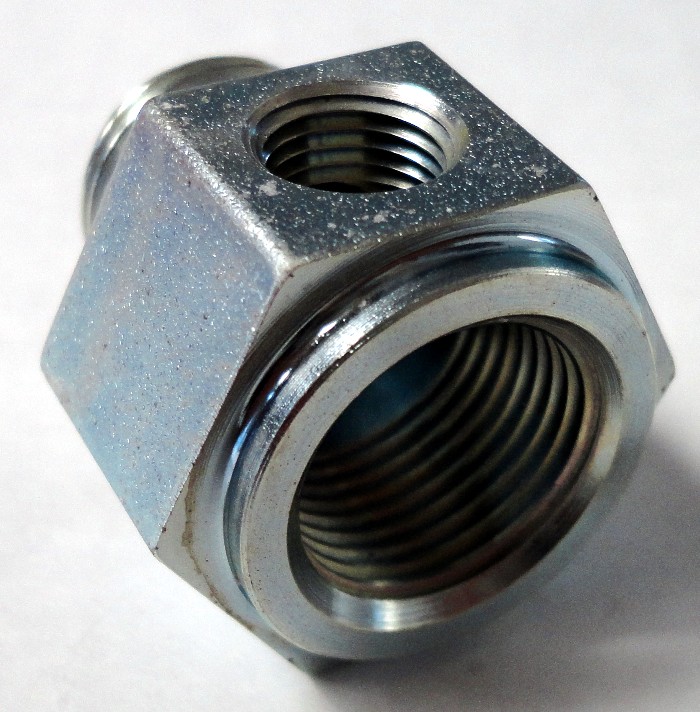

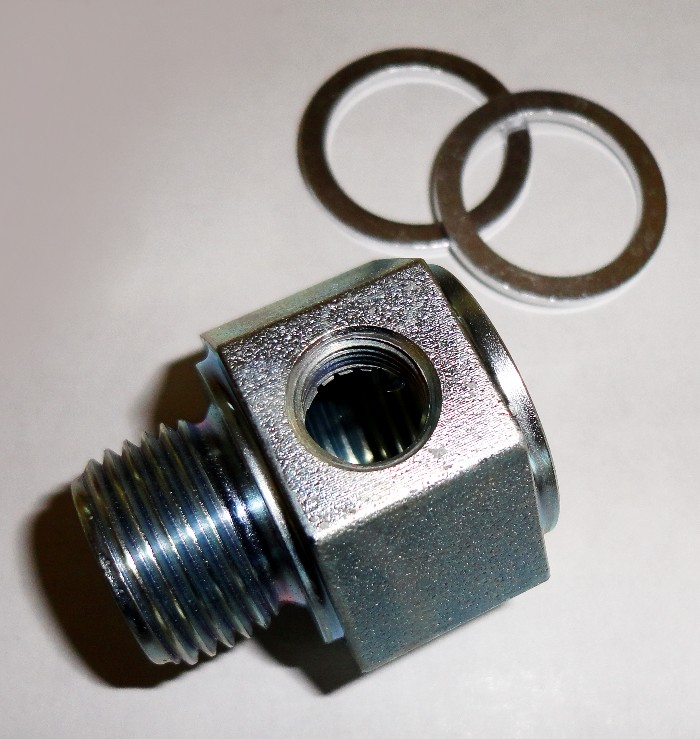

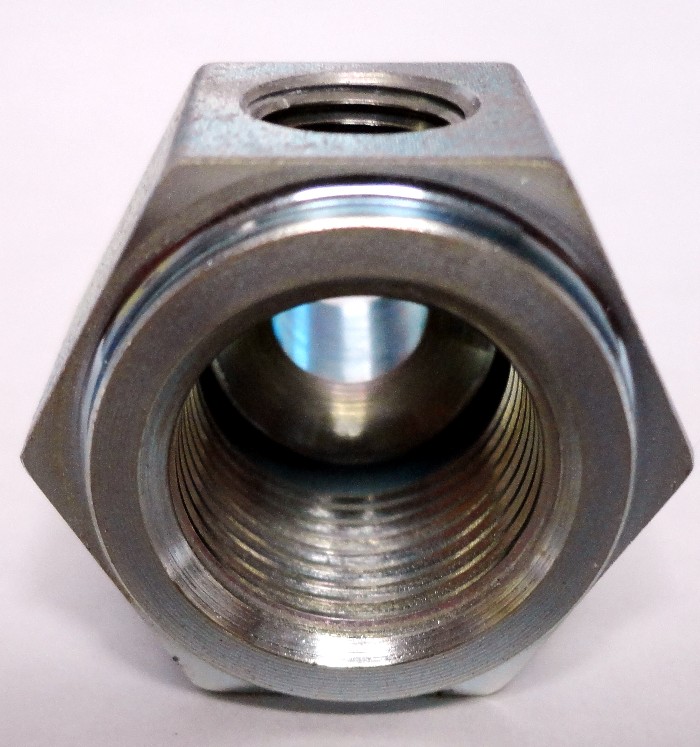

Lindsey Racing Oil Pressure Adapter.
|
This adapter allows the attachment of a mechanical oil pressure gauge.
This was developed for the 944 based chassis. Check you model and application to make sure you have adequate clearance as this will push the factory oil sending unit outward approximately 1 inch.
Fits Models:
|
Tips, Manuals and Instruction
Product Videos
Q: Dave the two sensors hit each other the factory sender is half way thru 1/8 npt hole
A: The depth of the 1/8" NPT hole in the part should accommodate anything you are screwing into it. Since it's taking a pressure reading via a hose, and not a sensor like a oil temp would be with something protruding into the cavity, the fact that you can see the stock sensor shouldn't be a problem. However, NPT standards/tolerances vary quite a bit, so it's possible. I would sand or grind a little off the small end of the part you are trying to screw into our part to shorten in a little. Perhaps one or two threads. There will still be plenty to seal the threads. Or you could stack one or two more seals under the stock sensor to "in effect" move the part further out to move it away from the NPT side port.
Q: Is this adapter m14 x 1.5 male to m14 x 1.5 female?
A: No, they are M18 x 1.5 threads.
Q: what are the straight thread dimensions, diameter and pitch? This is exactly what I am looking for to adapt a mechanical pressure gauge to my BMW motorcycle if the threads are 12mm x 1.5. Thanks, Andy
A: M18 x 1.5.
